FEATURES
- High CRI 95 light quality utilizing
- 8.6W nominal power consumption
- 280mm×20mm×2.0mm Zhaga compliant linear PCB
- Comes with Wago connectors for solderless daisy chain connection
- Constant current variant available on request
OVERVIEW
SPECIFICATIONS
ACCESSORIES
INSTALLATION
APPLICATIONS

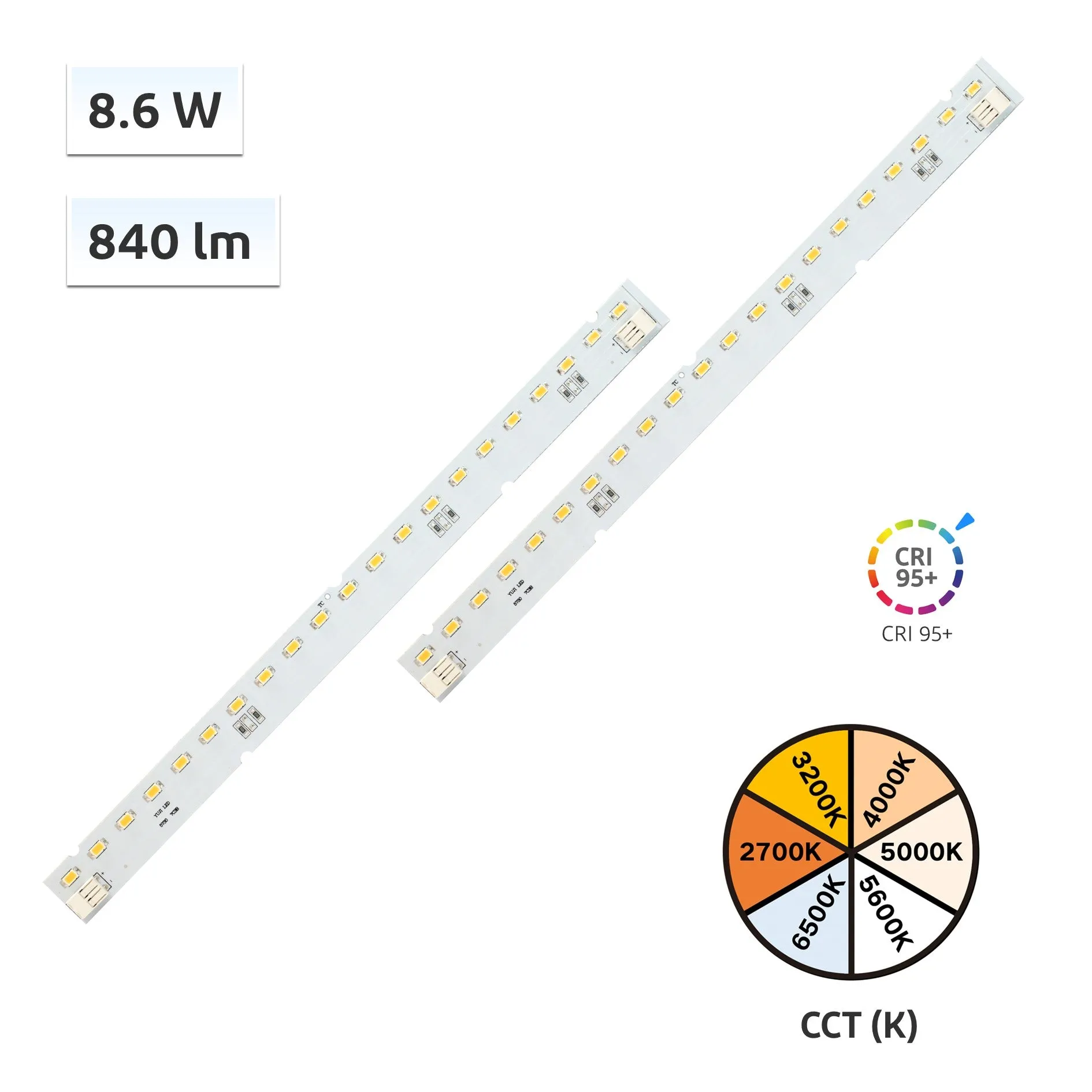

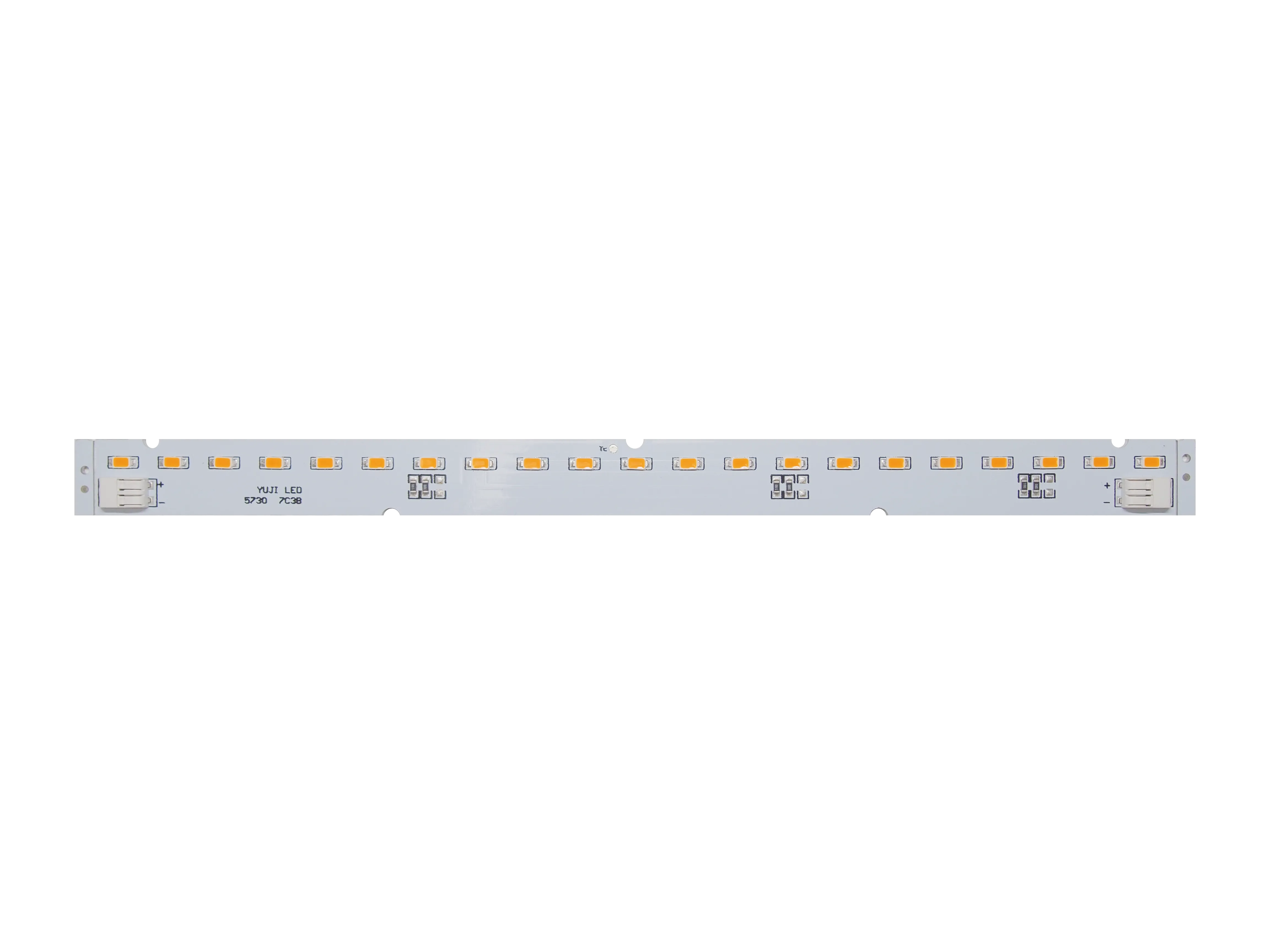

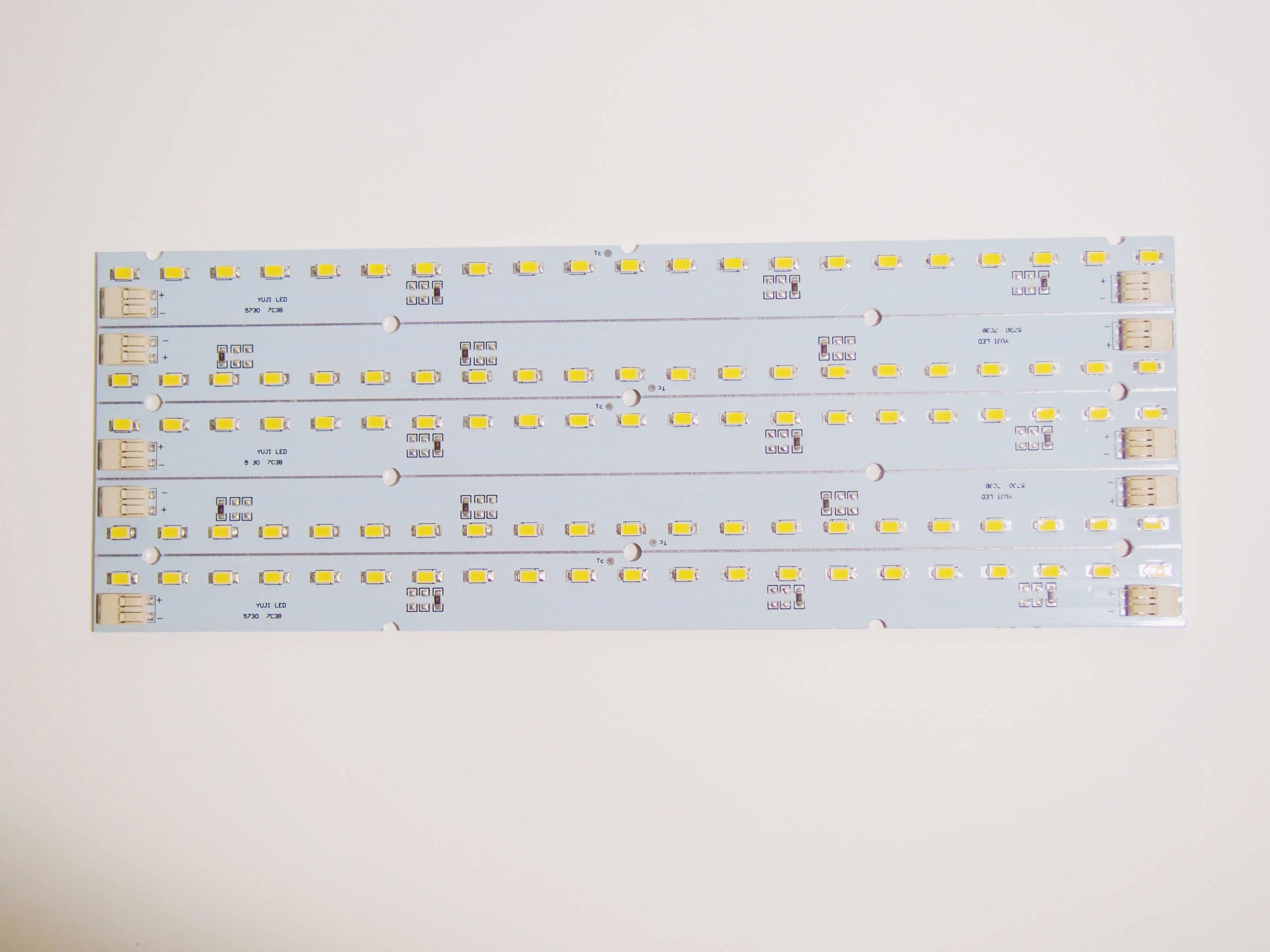

YUJILEDSCRI 95 LED linear module comes in a Zhaga standard form factor and provides a convenient PCB solution for high CRI LED applications. It is designed according to the Zhaga standard and is compatible with various common luminaires. It does not require additional heat sink and can be daisy-chained without soldering, just using the provided Wago connectors. Providing 95 CRI performance, this versatile LED module can be used in a variety of applications demanding high color quality and performance.
Power 8.6W Dimensions 280mm*20mm*2.0mm Light Source 21* SMD CCT & Luminous Flux 2700K 700lm-780lm 3200K 700lm-780lm 4000K 750lm-840lm 5000K 750lm-840lm 5600K 750lm-840lm 6500K 750lm-840lm CRI (Ra) 95 Rf 92 Rg 100 TLCI 2012 97 Viewing Angle 120° Forward Voltage DC 24V Forward Current 360mA Provided Connectors 10* Packaging 10pcs/pack Warranty 3 years Power Supply .
Make sure to select 24V to ensure compatibility with this product.
Connector

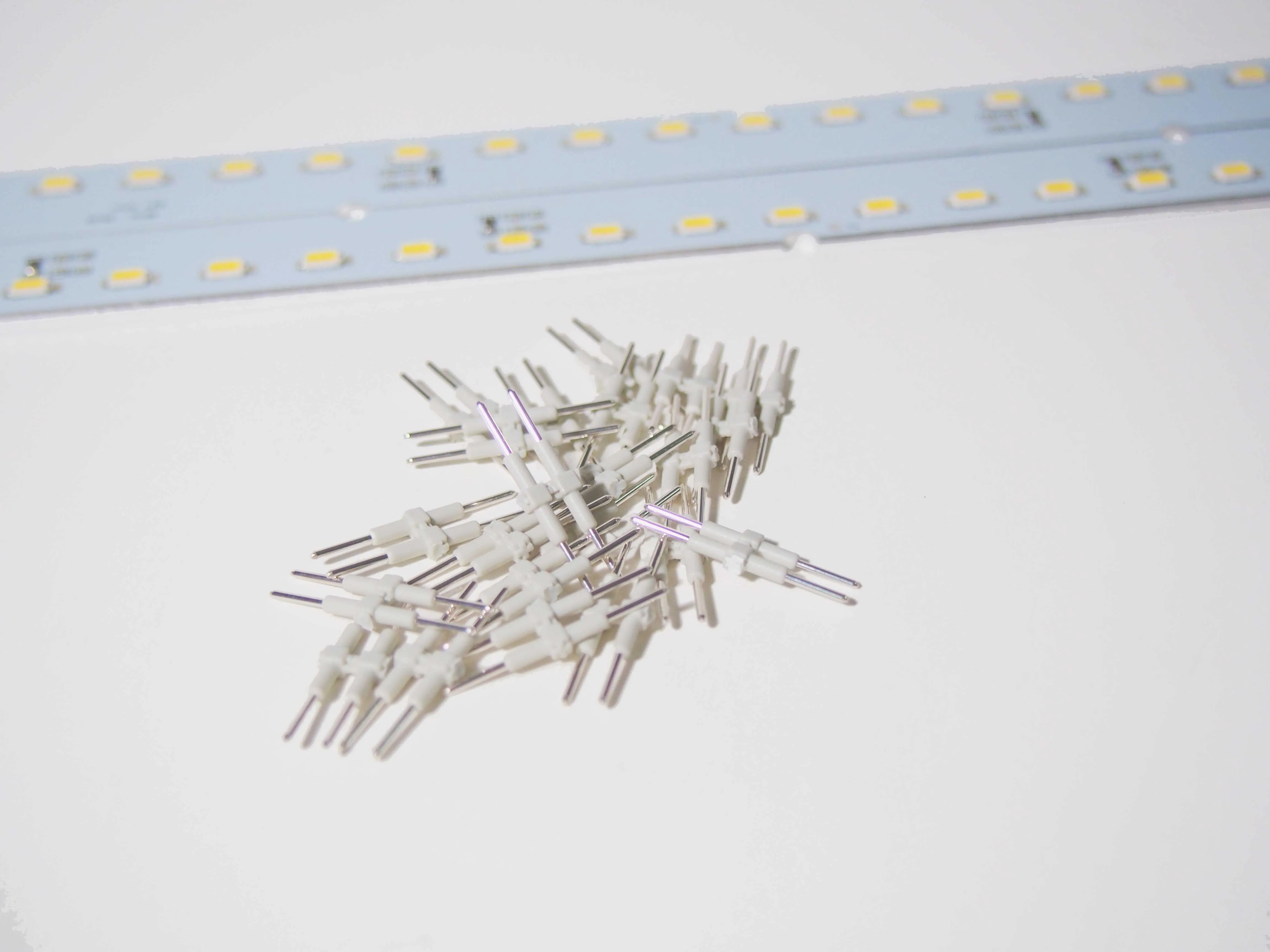

10pcsconnectors are included in the packaging.

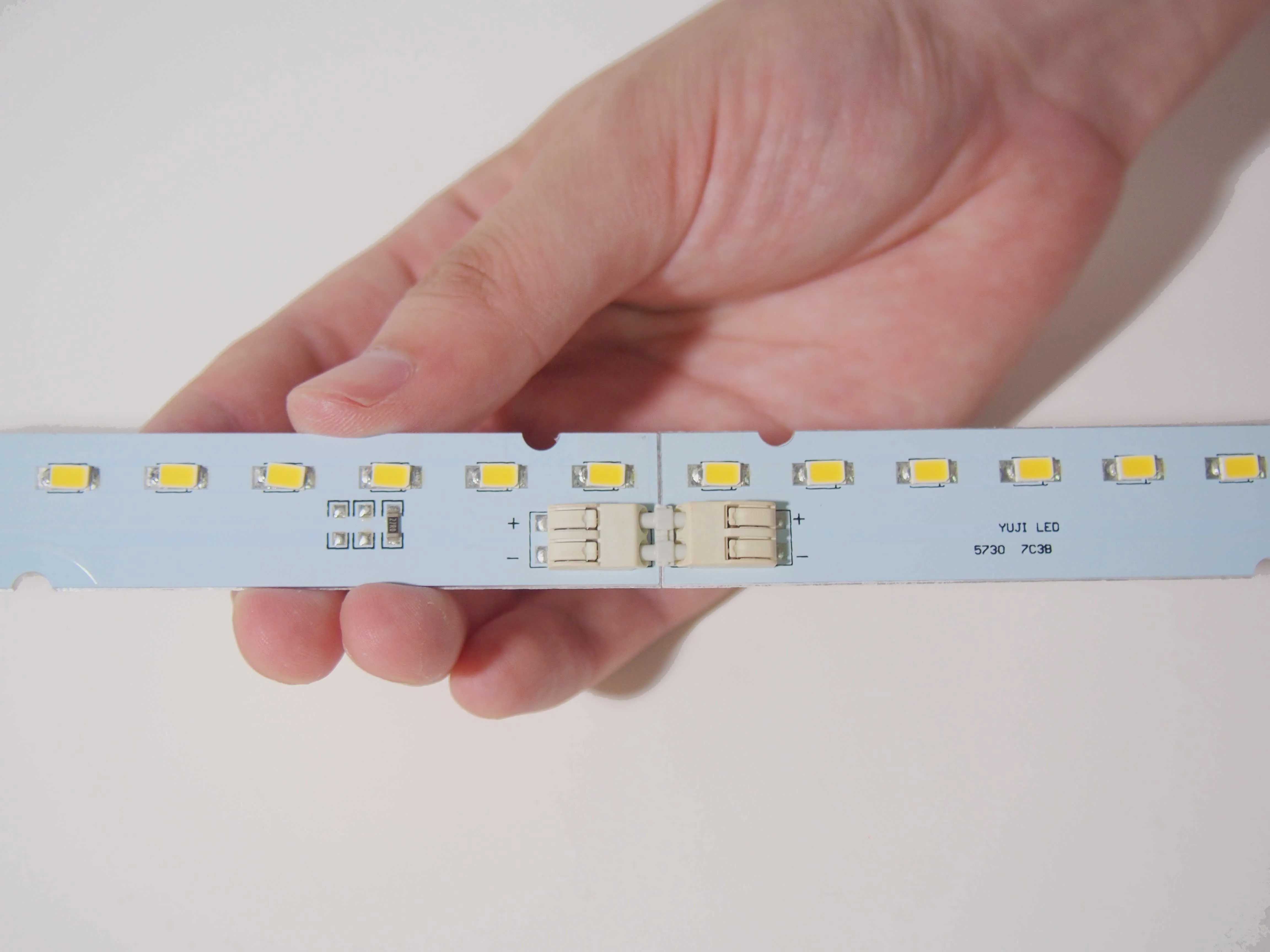

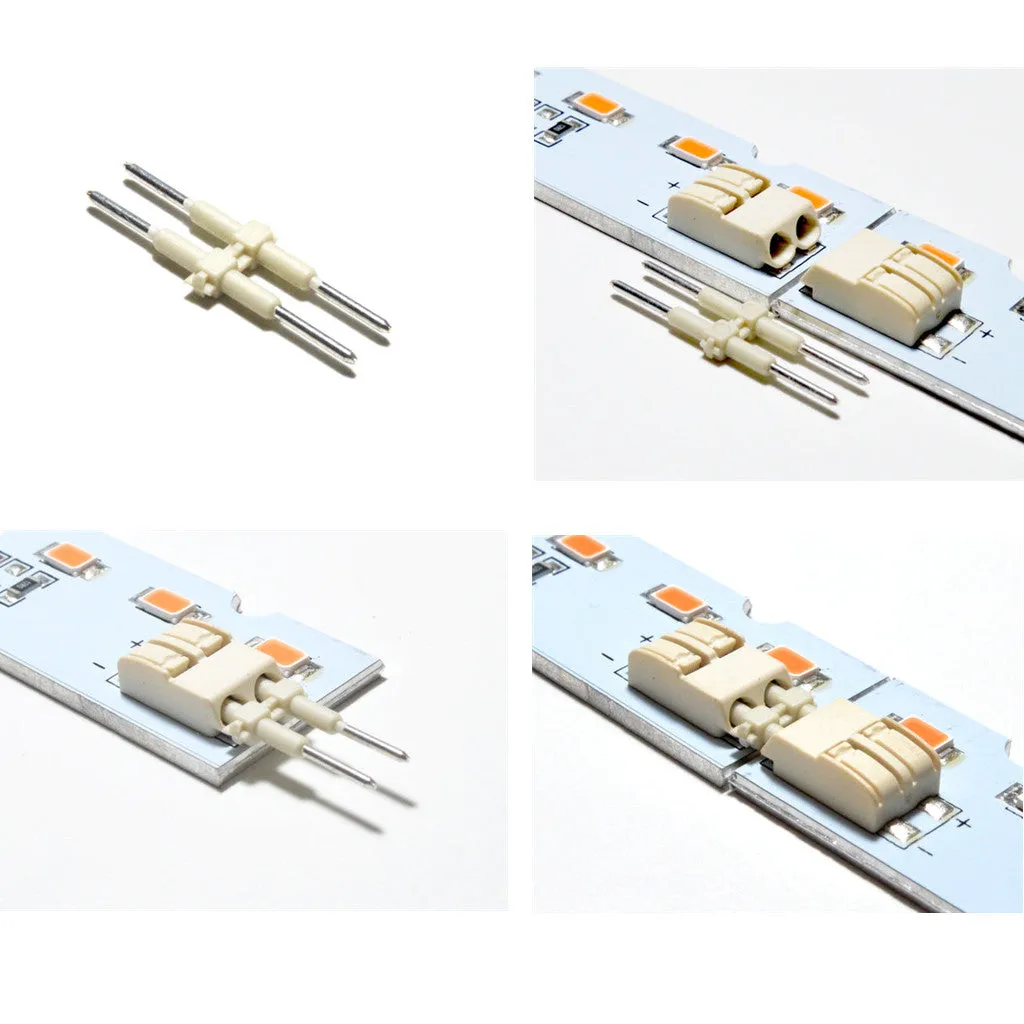

Double-ended board-to-board connectors for YUJILEDS MCPCB Modules allow for quick and effective linear connectivity.
- High-end architectural lighting
- Horticulture lighting
- Photographic/broadcast lighting
- Human-centric lighting
- Photoelectric device and relevant research
